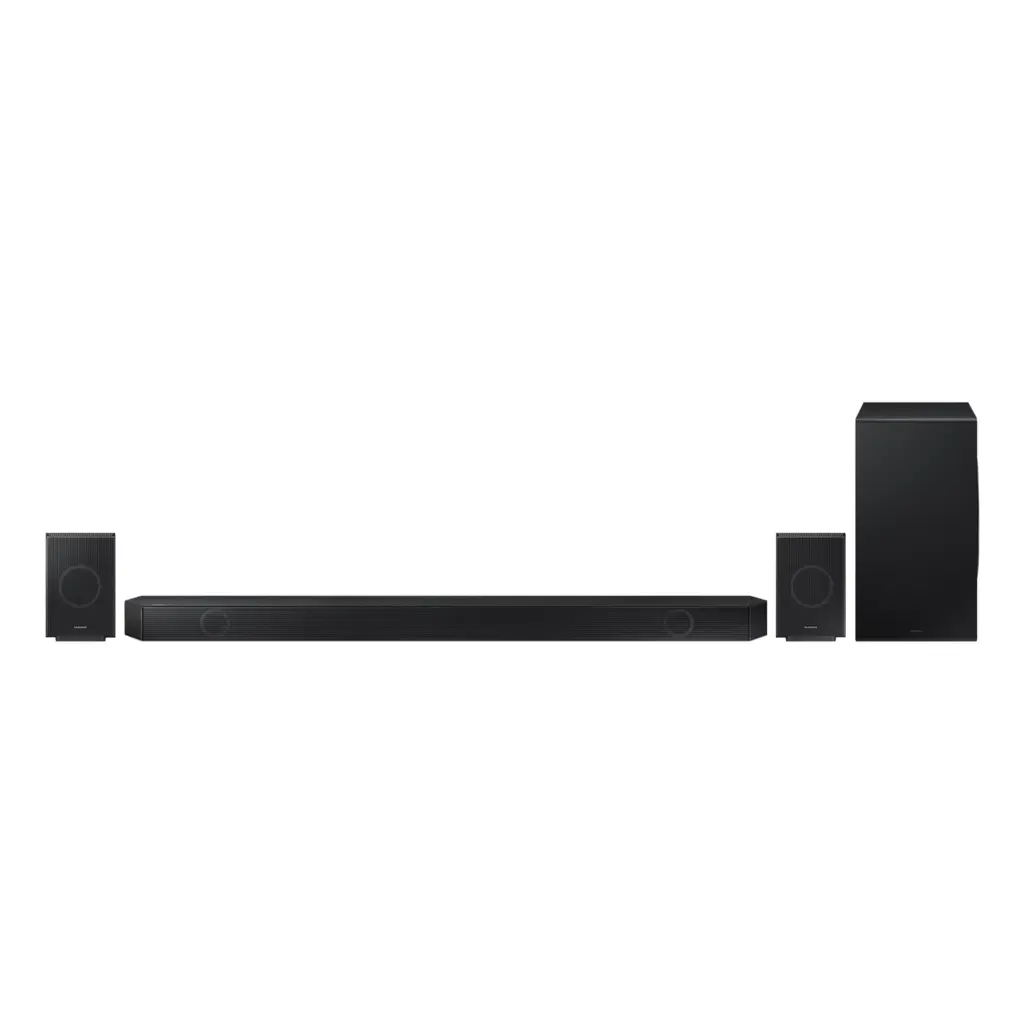

Samsung Atmos Sound Bar -11.1.4 Ch, HW-Q990D
The Samsung HW-Q990D is a high-end 11.1.4 channel soundbar system that delivers an immersive audio experience. It includes a main soundbar, a wireless subwoofer, and two rear speakers, totaling 22 drivers. This configuration supports Dolby Atmos and DTS:X technologies, providing three-dimensional surround sound
This content will be shared across all product pages.
You may prefer other option
المواصفات
| Technical Data | |
|---|---|
| اللون | Black |
| Connectivity | Wireless |
| Additional Information | |
|---|---|
| Brand | Samsung |
Key Features
True 11.1.4 Channel Sound: Delivers immersive audio with 22 speakers, including up-firing and side-firing drivers.

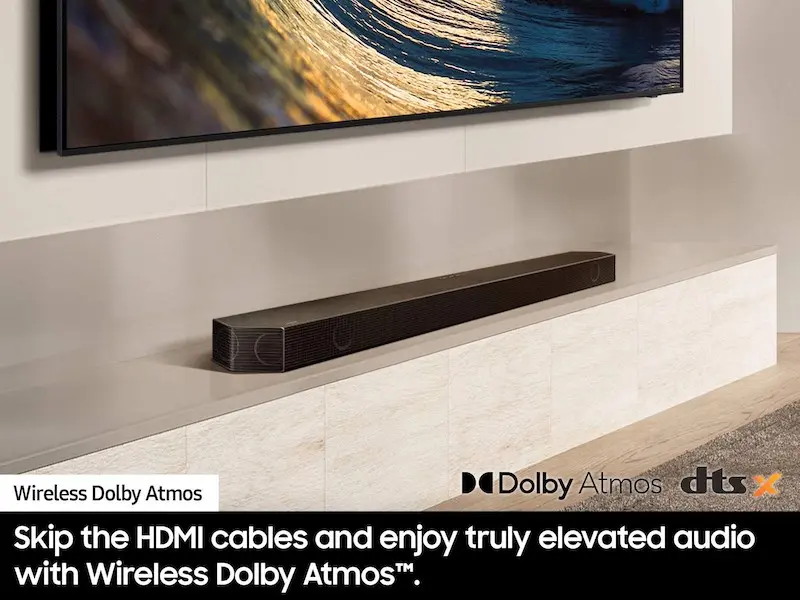

Wireless Dolby Atmos: Experience 3D sound without the need for HDMI cables.
Q-Symphony: Synchronizes audio from compatible Samsung TVs and the soundbar for a richer sound experience.
SpaceFit Sound Pro: Automatically calibrates sound based on your room's acoustics.
Game Mode Pro: Enhances gaming audio for a more immersive experience.
Connectivity: Features HDMI eARC, Bluetooth 5.2, Wi-Fi, Optical In, and support for AirPlay, Chromecast, and Spotify Connect.
Smart Features: Compatible with SmartThings App, Google Assistant, and Alexa.
Highlights
Specifications
Overview
| Attribute | Detail |
|---|---|
| Model | HW-Q990D |
| Channel Configuration | 11.1.4 |
| Number of Speakers | 22 |
| Color | Graphite Black |
| Gross Dimensions (Pack) | 1309 × 595 × 277 mm |
| Gross Weight (Pack) | 28.2 kg |
Speaker Details
| Speaker Type | Available |
|---|---|
| Center Speaker | Yes |
| Up-firing Speakers | Yes |
| Front Wide-firing Speakers | Yes |
| Side-firing Speakers | Yes |
| Wireless Subwoofer Included | Yes |
| Wireless Rear Speakers Included | Yes |
Audio Features
| Technology | Support |
|---|---|
| Active Voice Amplifier | Yes |
| SpaceFit Sound | Yes |
| Dolby Support | Dolby Atmos (incl. Music), Dolby True HD, Dolby Digital Plus, Dolby 5.1ch |
| DTS:X | Not specified (assumed included) |
| Voice Enhancement Mode | Yes |
| Night Mode | Yes |
| LPCM | Multi-channel |
| Sound Modes | Adaptive, Standard, Game Pro, Surround Sound Expansion |
Video Support
| Feature | Support |
|---|---|
| 4K Video Pass | 120Hz |
| HDR Support | HDR 10+ |
Audio Format Decoding
| Supported Formats |
|---|
| MP3, AAC, OGG, FLAC, WAV, ALAC, AIFF |
Connectivity
| Input/Output | Details |
|---|---|
| HDMI In | 2 Ports |
| HDMI Out | 1 Port |
| HDMI eARC | Yes |
| HDMI CEC | Yes |
| Optical In | 1 Port |
| Bluetooth | Yes (v5.2) |
| Wi-Fi | Yes |
| USB Music Playback | No |
Smart Features
| Feature | Available |
|---|---|
| SmartThings App | Yes |
| Q-Symphony (TV Sync) | Yes |
| Multi-position Rear Speakers | Yes |
| Tap Sound | Yes |
| Chromecast Built-in | Yes |
| Spotify Connect | Yes |
| Apple AirPlay | Yes |
| Wireless Dolby Atmos | Yes |
| Roon Tested | Yes |
Voice Assistant Support
| Assistant | Support |
|---|---|
| Google Assistant | Yes |
| Bixby | No |
| Amazon Alexa | No |

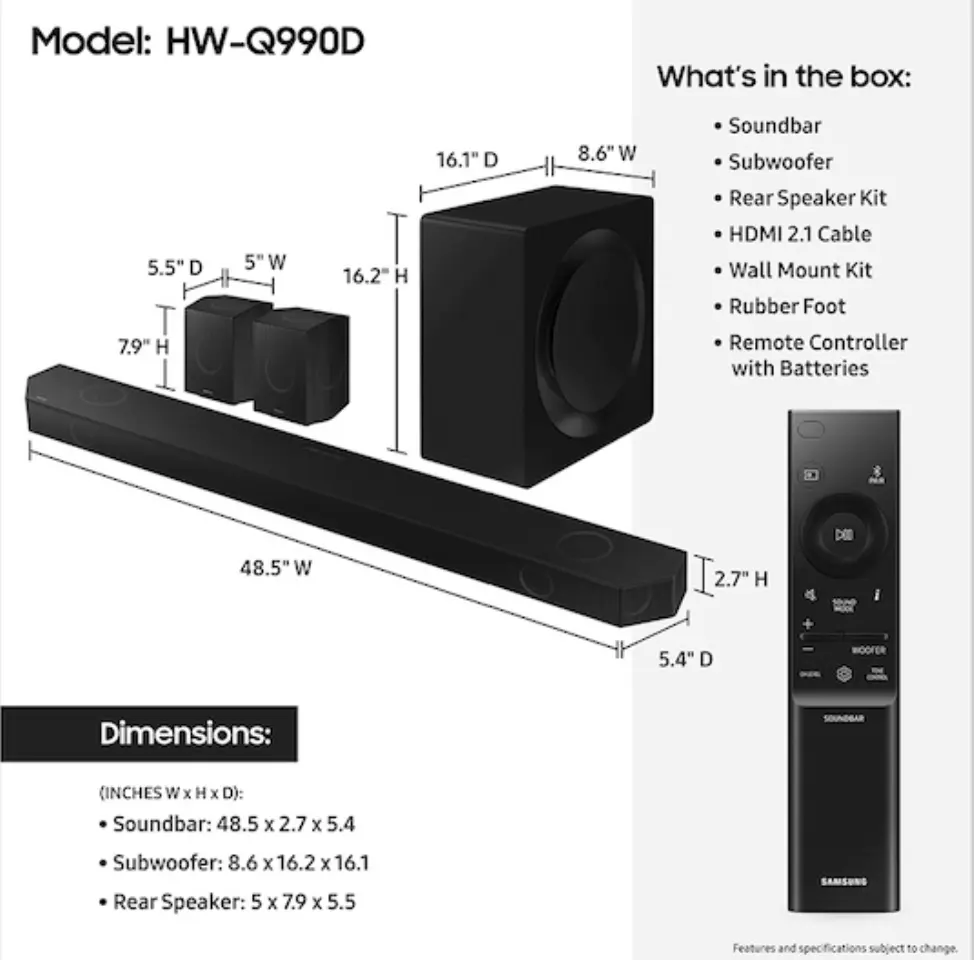

Physical Dimensions
| Component | Dimensions (W×H×D, mm) |
|---|---|
| Main Speaker | 1232 × 69.5 × 138.0 |
| Rear Speaker | 129.5 × 201.3 × 140.4 |
| Subwoofer | 220.0 × 413.0 × 410.0 |
| Package (Overall) | 1309 × 595 × 277 |
Weight
| Component | Weight (kg) |
|---|---|
| Main Speaker | 7.7 kg |
| Rear Speakers (Each) | 3.4 kg |
| Subwoofer | 11.7 kg |
| Gross Package | 28.2 kg |
Power Consumption
| Component | Standby | Operating |
|---|---|---|
| Main Unit | 0.5 W | 41 W |
| Rear Speaker (L/R each) | 0.5 W | 19 W |
| Subwoofer | 0.5 W | 26 W |
| Free Voltage Support | Yes | |
| Energy Star Certified | No |
Accessories Included
Remote Controller
Wall Mount Bracket
Manuals
